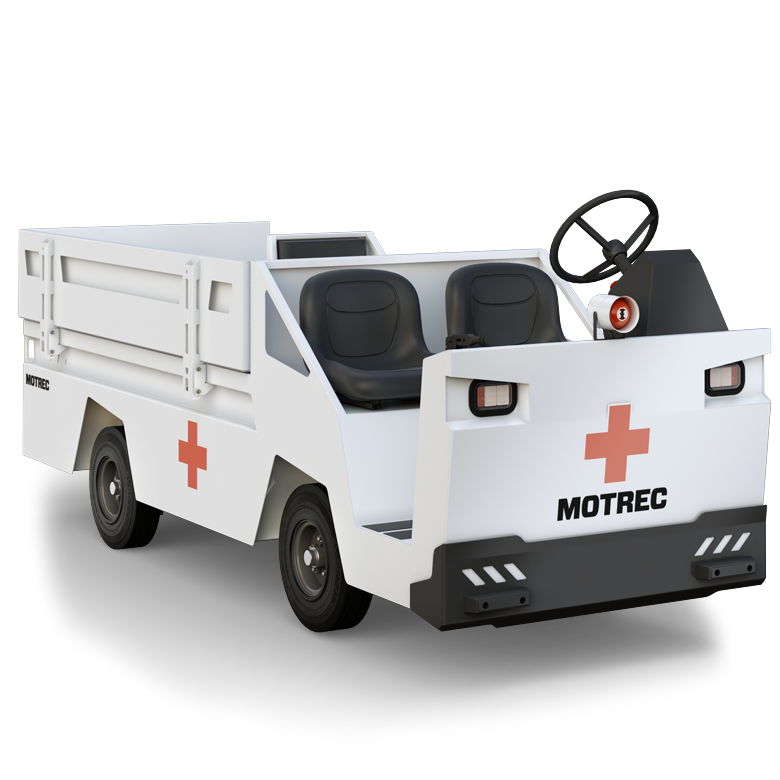

Motrec MX-480 Ambulance

GET A QUOTE
Rescue people anywhere, quickly and safely. With its integrated nurse seat, hinged sides and first aid compartment, the MX-480 Ambulance makes a great turnkey solution. Its short turning radius and impressive maneuverability are ideal for confined settings. The long list of options include electric siren, red strobe light, second storage compartment, multi-level cot and IV pole. This zero-emission vehicle can also be equipped with top, windshield and roll-up sides for all-weather protection. Fully customizable and brandable.

Not available

Not available

  • High-efficiency asynchronous AC / Direct Drive motor: Offers better control for full motor performance, as well as higher possible speeds and better torque at low speeds. Maintenance-free brushless electric motor equipped with temperature and speed sensors.
  • AC controller with sealed connectors paired with multifunction display: Allows for precise speed control for greater safety and vehicle performance. Includes indicators for speed, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability.
  • Console on steering column: Complete console on steering column to put all controls and displays conveniently right where your fingers and eyes are. Now with a tilted steering column for a more ergonomic and natural driving posture to reduce operator fatigue and strain.

Motor: Brushless AC motor, 15 HP Max (9 HP Continuous)

Deck Length : 82″

Safety : Deadman seat switch, reverse alarm, horn, automatic parking brake

Voltage: 48V

Drive Axle : Helical gear differential

Steering : Automotive steering wheel, tilted steering column

Controller : AC Electronic speed controller

Indicators : Multifunction display including speedometer, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability.

Lights: LED dual headlights & tail/brake lights, dual back-up lights

Width : 44,5″

Brakes: Rear hydraulic drum brakes, electromagnetic parking brake with manual hand release, regenerative braking

Accessories: Console on steering column, bolt-on front bumper, DC/DC converter to equalize battery cells, LED charge indicator

Transmission : Direct Drive

Suspension: Dual leaf springs on front and rear

Height: 54,5″

Seats: Two bucket seats on slide adjusters

Length : 130″

Charger : High-frequency (85-265VAC / 45-65Hz, 1kw), built-in and automatic.

Deck Width : 44,5″

Body: All-steel unibody construction. Powder Coating.

Wheels: 5.7×8 LRD pneumatic tires

Battery : Eight 6V-225AH batteries

Wheel Base : 65,5″

Passengers: 3

Load Capacity: 2,000 lbs.

Towing Capacity: 6,000 lbs.

Speed: 10 mph

Turning Radius: 139″
