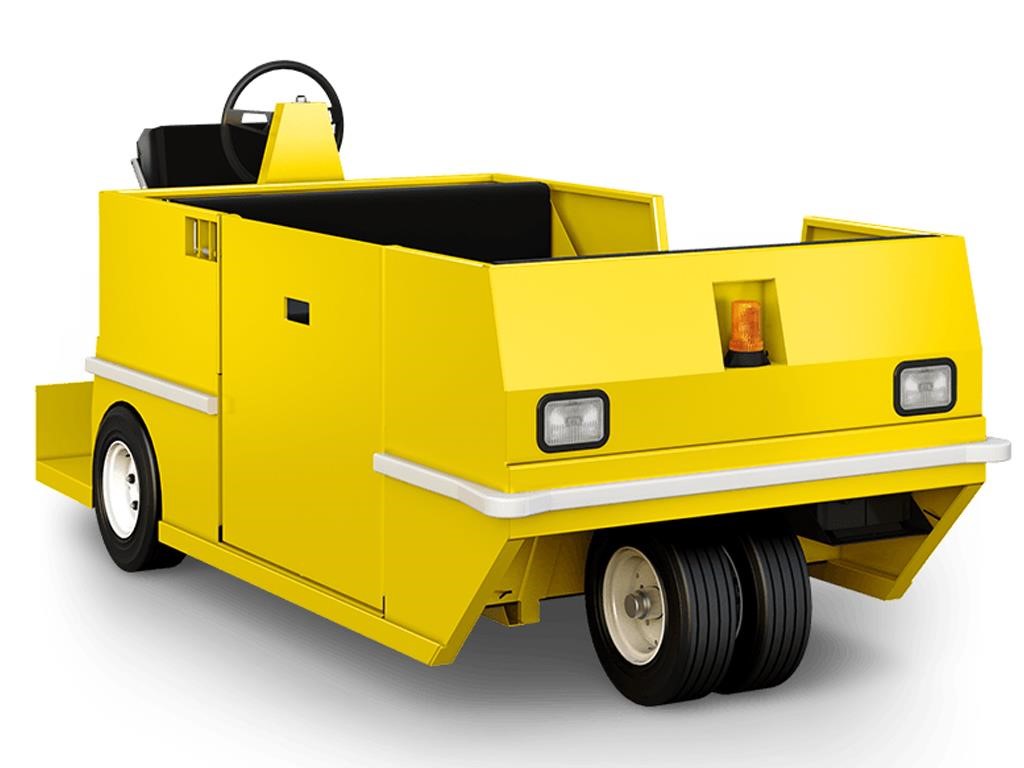

Motrec MP420
Not available
Not available
STABILITY-BOOSTING DUAL FRONT WHEELS
Improves vehicle stability and maneuverability. Robust dual design is twice as strong as a single wheel. Increases wheel lifespan and reduces maintenance as wheels suffer less wear and tear.
HEAVY-DUTY BRAKING POWER
Provides faster braking and shorter stopping distances, even when towing heavy loads. Stronger, more durable and more efficient design ensures superior braking performance with less maintenance vs. competing brakes. Brake safely and confidently every time.
ENERGY-SAVING REGENERATIVE BRAKING
Lengthens running time by using energy more efficiently. Braking is automatically applied whenever the accelerator is released, feeding energy back into the battery. Operator also uses the brake less often, reducing wear and tear.
Similar models may be shown in addition to the featured model. Equipment may be shown with options. Specifications are subject to change without prior notice.
Technical Data – Turning Radius: 90″
Equipment – Lights: Dual LED headlights
Technical Data – Model: MP 420 36V
Powertrain – Controller: Electronic speed controller
Vehicle Dimensions – Width: 47″
Equipment – Safety: Reverse alarm, strobelight
Chassis – Suspension: Rigid axles on front and rear
Energy – Charger: 25 Amp, built-in automatic
Powertrain – Drive Axle: Differential with automotive ring gear
Powertrain – Motor: 10 hp
Chassis – Wheels: 4.80 x 8 LRC pneumatic tires
Vehicle Dimensions – Length: 104″
Chassis – Steering: Automotive steering wheel
Technical Data – Passengers: 5
Vehicle Dimensions – Height: 49″
Equipment – Indicators: Battery status indicator
Energy – Voltage: 36V
Powertrain – Transmission: Dual V-belt drive
Technical Data – Speed: 8 mph
Vehicle Dimensions – Weight: 1,300 lbs.
Vehicle Dimensions – Wheel Base: 66″
Technical Data – Towing Capacity: 4,000 lbs.
Technical Data – Load Capacity: 1,700 lbs.
Energy – Battery: Six 6V-225AH batteries
Chassis – Seats: Padded backrest for operator, bench seating for four passengers
Chassis – Brakes: Dual self-adjusting mechanical drum brakes on rear, deadman brake on control treadle, regenerative braking
Equipment – Accessories: Horn, 36V/12V converter to equalize cells and extend battery life
