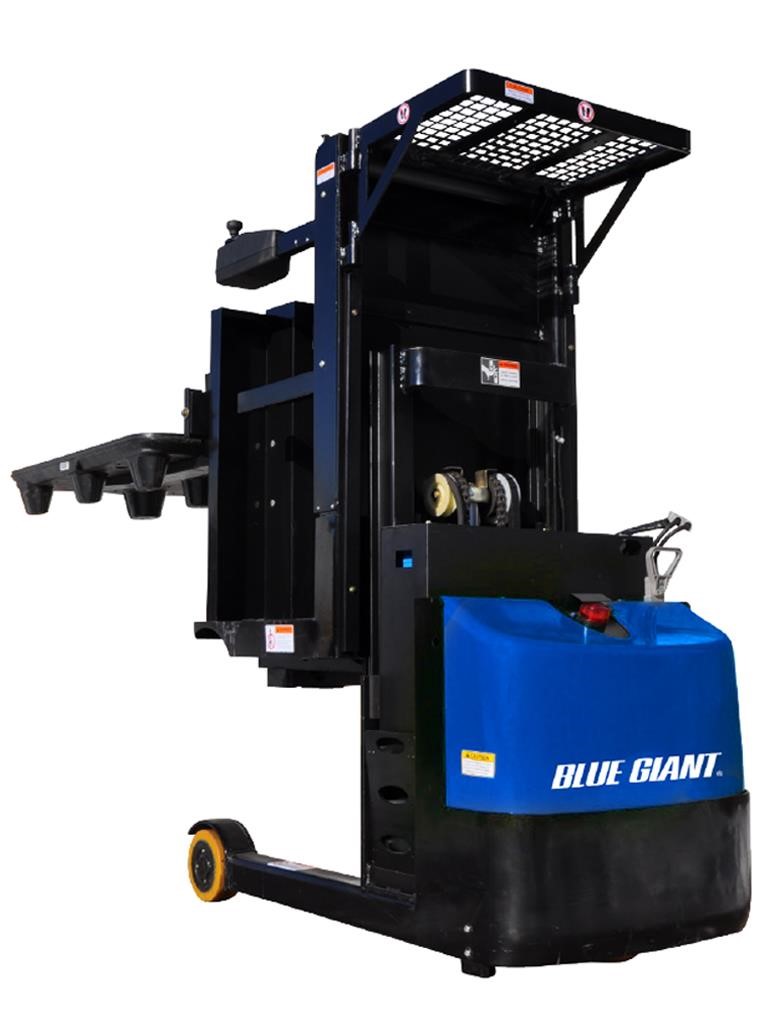

Blue Giant BG2-72
Utilizing many of the same reliable components as the BG1, the BG2-72 can elevate an operator 48″ and features a mini mast that can lift up to 1,500 lb loads to a 72″ elevation. The BG2-72 offers travel speeds up to 4.5 mph.
BG2-72 can be used to effectively order pick from low level locations and improve access to pick faces close to the floor. Travel is provided by a high efficiency AC drive motor on each unit that can be programmed through the onboard LCD dash. Power comes from a 340AH industrial battery or 224AH AGM maintenance free battery pack that is an available option.
CAPACITY
• 1,500 lb (680 kg) at 24″ LC on forks
• 300 lb (136 kg) operators’ compartment
• 200 lb (91 kg) rear work platform
STANDARD FEATURES
• 36″ long forks
• Non-marking tires
• Rear flashing light
• Battery compartment rollers
• Hydraulic front mini mast with independent controls
• Low 9″ step height compartment
AVAILABLE OPTIONS
• 12-volt accessory power supply
• 24-volt industrial battery
• 24-volt external charger
• Forward controls
• 224AH maintenance free battery pack with 110V plug-in charger
• Walk along order picking controls
BATTERY INFORMATION
• Minimum battery weight: 700 lb (318 kg)
• Compartment dimensions: 32″ x 11″ x Open
• Connector: Anderson 175 Grey – A-11
ELECTRICAL
• Dual 24-volt ZAPI ACO travel and power steering controllers
• LCD dashboard displays hour meter, battery state, travel speed, and travel direction indicator
• AC drive motor
• Low-maintenance brushless design
• Selectable travel speed settings
BRAKES
• Regenerative braking when coasting and plug braking
• Electromagnetic parking brake
OPERATION / CONTROLS
• Ergonomic fingertip control for travel, lift, and lower functions
• Roomy operator compartment
• Retractable compartment guard rails keep the operator secure
• On/off key switch and horn
MAST
• Heavy-duty I-beam design
• Steel mast channels and side mounted lift cylinders
CHASSIS
• Three-point chassis design
• 180° drive motor steering arc
• Powerhead mounted stability casters mounted on powerhead
STANDARD EQUIPMENT
• Non-marking tires
• Rear flashing light
• Battery compartment rollers
• Mini mast with 36″ forks
OPTIONAL EQUIPMENT
• 12-volt accessory power supply
• 24-volt industrial battery
• 24-volt external charger
• Forward controls
• 224 AH maintenance free battery pack with 110V plug-in charger
Similar models may be shown in addition to the featured model. Equipment may be shown with options.
Specifications are subject to change without prior notice.
Tires / Wheels – Drive: (1) 9″ x 3″ polyurethane
Specifications – Extended Height: 102″ (2,591 mm)
Battery – Connector: Anderson 175 Grey – A-11
Lift – Maximum Lift Height: 48″ operator platform, 72″ forks
Capacity – Operator’s Compartment: 300 lb (136 kg)
Tires / Wheels – Stability: (2) 3″ x 2″ polyurethane
Specifications – Model: BG2-72
Specifications – Weight (Chassis Only): 2,874 lb (1,029 kg)
Maximum Speed – Lift: Up to 42 fpm
Capacity – Rear Work Platform: 200 lb (91 kg)
Battery – Compartment Dimensions: 32″ x 11″ x Open
Specifications – Overall Width: 31.5″ (800 mm)
Tires / Wheels – Load Wheels: (2) 8″ x 3″ polyurethane
Capacity – At 24″ LC on Forks: 1,500 lb (680 kg)
Maximum Speed – Travel: Variable from 0 mph to 4.5 mph
Specifications – Mast: Single Stage
Specifications – Overall Length: 99.5″ (2,527 mm)
Specifications – Collapsed Height: 62.0″ (1,575 mm)
Specifications – Lift Height: 72″ (1,829mm)
Battery – Minimum Battery Weight: 700 lb (318 kg)
