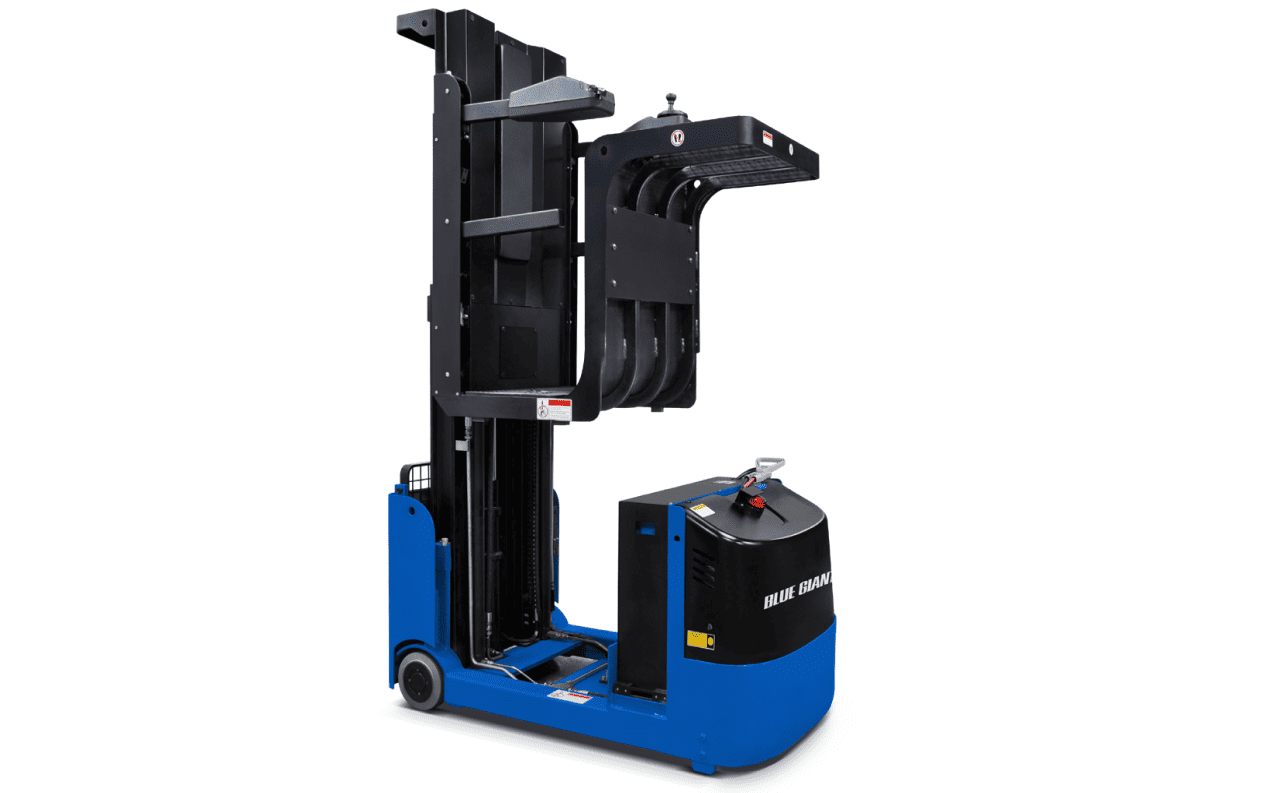

Blue Giant BG1
- Capacity: 1000
- Max Lift Height: 192"
- Power: Lithium-ion
- Beverage
- Chemicals & Plastics
- E-Commerce & Retail Fulfilment
- Food
- Logistics
The BG1 can turn many two-person tasks into one-person tasks, and allows many one-person tasks to be done twice as fast. With the available high-speed option, the BG1 can operate at up to 5 mph when at ground level, while automatically reducing travel speed at height. Precise electronic power steering and the ability to turn around in a 72″ aisle, also make the BG1 an extremely easy vehicle to maneuver.
CAPACITY
• 1000 lb (454 kg) combined
• 500 lb (227 kg) front work platform
• 300 lb (36 kg) operators’ compartment
• 200 lb (91 kg) rear hide away tray
LIFT HEIGHTS
• 126″ (3,200 mm)
• 162″ (4,115 mm)
• 192″ (4,877 mm)
STANDARD FEATURES
• Electronic power steering
• Large operator compartment with cushioned floor and backrest
• Hide away work tray
• Front and rear flashing lights
• Audible alarm when guardrail is raised
• One-piece powerhead cover for easy service
AVAILABLE OPTIONS
• Anchor with tether and harness
• Tow hitch
• 224AH AGM battery pack w/120v charger
• Industrial battery with external charger
• 12-volt power outlet adapter
BATTERY
• 24-volt battery pack (4) 6V 224 AH AGM maintenance-free batteries
• Built-in 110VAC 15A charger
• Minimum battery weight: 480/590 lb (218/268 kg)
• AH capacity (min/max): 180/255
• Compartment dimensions (open): 26.37″ x 8.06″
• Battery compartment rollers
• Connector: SB-175 Grey – A-11
SPEED
• ZAPI AC-0 travel controller
• EPS AC-0 power steering controller with dashboard display
• Variable from 0 mph to 3.4 mph
• Reduced travel speed at elevation
• Lift: up to 42 fpm
ELECTRICAL
• AC controller manages travel, braking, lift/lower, and steering
• LCD dashboard displays hour meter, battery state, travel speed, and travel direction indicator
• AC drive motor
• Low-maintenance brushless design
• Programmable travel speeds, plugging, and neutral braking are infinitely variable
• Low battery travel lockout
BRAKES
• Regenerative braking
• Electromagnetic parking brake
OPERATION / CONTROLS
• Ergonomic fingertip control for travel, lift, and lower functions
• Roomy operator compartment
• Retractable compartment guard rails keep the operator secure
• On/off key switch and horn
MAST
• Heavy-duty I-beam design
• Steel mast channels and side mounted lift cylinders
CHASSIS
• Three-point chassis design
• 180° drive motor
STANDARD EQUIPMENT
• Electronic power steering
• Hide away rear work platform
• Front and rear flashing light
OPTIONAL EQUIPMENT
• Anchor with tether and harness
• High speed travel
• Tow hitch
• Industrial battery and charger
Similar models may be shown in addition to the featured model. Equipment may be shown with options.
Specifications are subject to change without prior notice.
Specifications – Working Height: 203″ (5,156 mm)
Specifications – Load Tray Height: 159″ (4,280 mm)
Specifications – Collapsed Height: 62.6″ (1,590 mm)
Specifications – Extended Height: 178.6″ (4,536 mm)
Tires / Wheels – Drive: (1) 9″ x 3″ polyurethane
Specifications – Model: BG1-126
Specifications – Lift Height: 126″ (3,200 mm)
Tires / Wheels – Stability: (2) 3″ x 2″ polyurethane
Specifications – Weight (Chassis Only): 2,268 lb (1,029 kg)
Tires / Wheels – Load-Steel Hub: (2) 8″ x 3″ polyurethane
Specifications – Mast: Triple Stage
